Blown Film Machine

This A-B-A Blown Film Extrusion Machine is basically a Blown Film Plant producing a THREE LAYER FILM but with the TWO EXTRUDER. It’s a result of a specially designed A-B-A Type Co-Ex Die which enables to produce a Three Layer Film with Two Extruder. Technically in A-B-A type film, the Outer and Inner layer will be of the same Polymer as being fed by the same extruder and a Middle Layer will be of a different Polymer which will be fed by a second extruder.

The cost of virgin (raw) material (HDPE/ LDPE) continues to go up every year, and therefore many packaging film producers equipped with co-extrusion blown film extrusion machines have started to make 3 layer (A-B-A) films to reduce cost, replacing the traditional single and two layer blown film extrusion machines to stay competitive in the market

The A-B-A Blown film extrusion lines are manufactured to adapt to a broad range of applications. The plant is a rugged and compact model – very space saving. It comes with advanced technology like the grooved Feed Technology, PID Temperature controllers, and AC Frequency Drive.

Features

•  Film With High Strength & Resistance
•  Fast Return on Investment
•  Three layer Film
•  Low Power consumpation
•  Outstanding Output

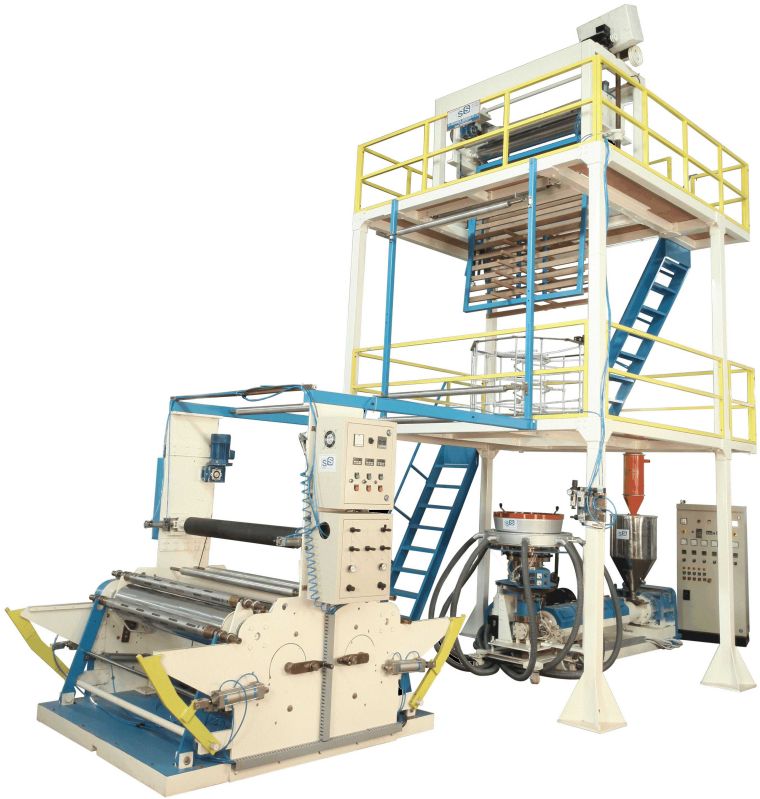

We Offer a diverse range of customized monolayer high speed inflation machine – to suit a customer’s specific requirement. Our most appreciated monolayer blown film machines are available with outputs ranging from 35 kg/hr to 85 kg/hr and lay-flat widths ranging from 50 mm to 1000 mm for processing polymers as LD, LLD, HM / HDPE. Our monolayer blown film machines are also available with special configurations to process wide width HDPE film, similarly these lines are also available with up to 4 color inline flexographic printing.

Our monolayer blown film machines incorporate advanced features like-grooved feed barrel, barrier screw, dosing system, , manual as well as automatic screen changer, Rotating Die / platform , internal bubble cooling, automatic bubble cage, online thickness monitoring and control, 2 station surface and center winders , Auto tension control, Corona treaters etc. for longer life, higher productivity and better quality.

Features

•  Film With High Strength & Resistance
•  Compact in Design
•  Low Power Consumption
•  Fast Return on Investment
•  Outstanding Output & Range

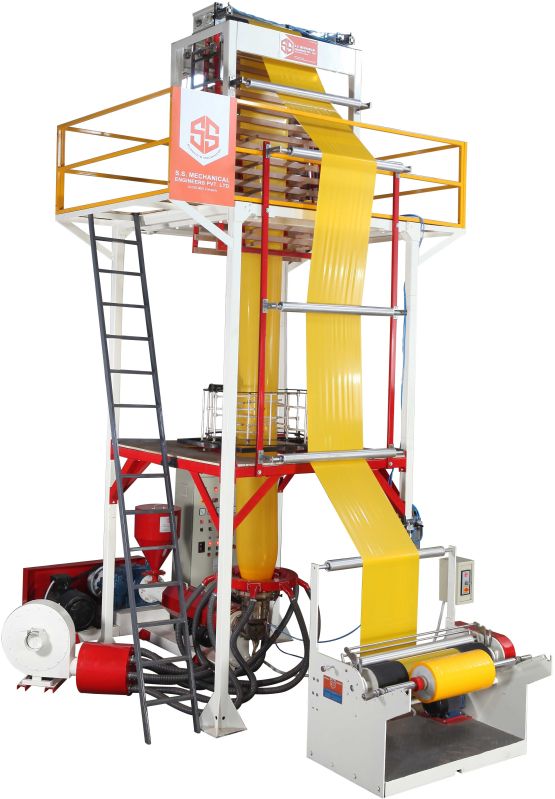

We Offer a diverse range of customized monolayer high speed inflation machine – to suit a customer’s specific requirement. Our most appreciated monolayer blown film machines are available with outputs ranging from 35 kg/hr to 85 kg/hr and lay-flat widths ranging from 50 mm to 1000 mm for processing polymers as LD, LLD, HM / HDPE. Our monolayer blown film machines are also available with special configurations to process wide width HDPE film, similarly these lines are also available with up to 4 color inline flexographic printing.

Our monolayer blown film machines incorporate advanced features like-grooved feed barrel, barrier screw, dosing system, , manual as well as automatic screen changer, Rotating Die / platform , internal bubble cooling, automatic bubble cage, online thickness monitoring and control, 2 station surface and center winders , Auto tension control, Corona treaters etc. for longer life, higher productivity and better quality.

Features

•  Film With High Strength
•  Low Power Consumption
•  Fast Return on Investment
•  Outstanding Output

We Offer a diverse range of customized Monolayer Blown Film Lines to suit a customer’s specific requirement.

Our most appreciated Monolayer Blown Film Plant are available with outputs ranging from 35 kg/hr to 450 kg/hr and lay-flat widths ranging from 50 mm to 6000 mm for processing polymers as LD, LLD, HM / HDPE.

The Monolayer Blown Film Plant are also available with special configurations to process wide width HDPE film, similarly these lines are also available with up to 4 color inline flexographic printing.

Our Monolayer Blown Film Machine incorporate advanced features like-grooved feed barrel, barrier screw, dosing system, Liquid PIB dosing system, manual as well as automatic screen changer, Rotating Die / platform , internal bubble cooling, automatic bubble cage, online thickness monitoring and control, 2/4 station surface and center winders , Auto tension control, Corona treaters etc. for longer life, higher productivity and better quality.

Features

•  Film With High Strength & Resistance
•  Fast Return on Investment
•  Pneumatic Surface Roll Winder
•  Low Power consumpation
•  Outstanding Output

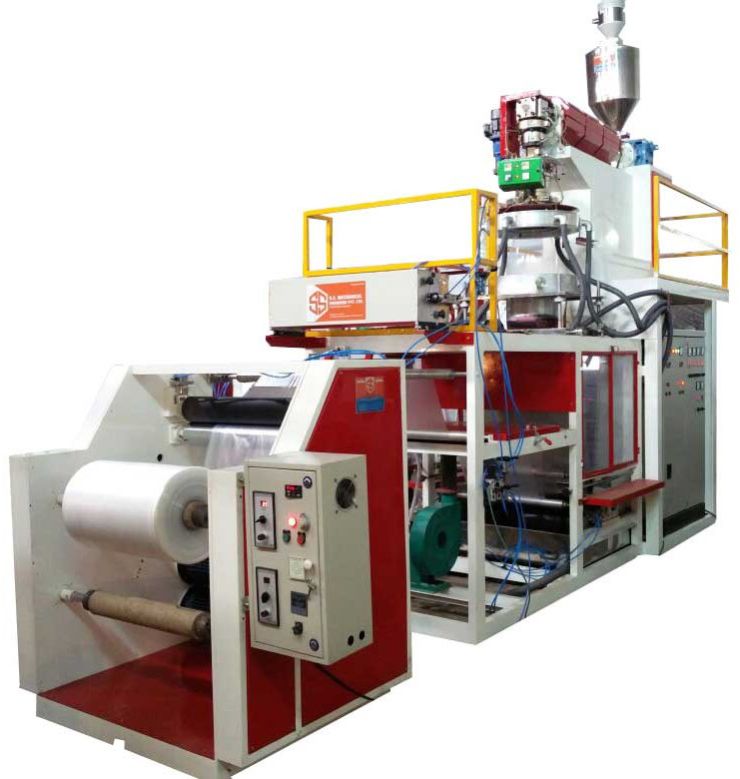

We are manufacturing these film plants in different widths depending upon its application area. Our Blown Film Plants and machineries have diverse applications and supreme quality products made at par to the international standards.

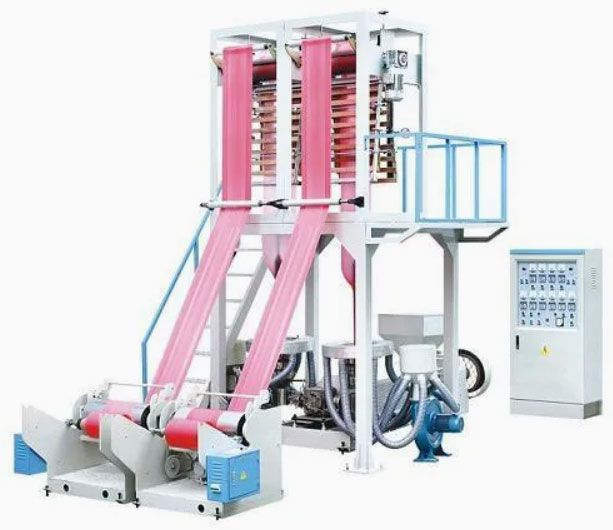

Our most demanded blown film lines are to produce various combinations of PP and PE grades as per customer’s specific requirements. The lines are capable to process polyproplene(PP) for narrow width bags a Double Die-head downward extrusion blown film line is also offered to produce narrow width PP bags for grocery packaging application. These lines are quite energy efficient and give optimum production rate which makes investment to installed capacity ratio much favorable. Two layer configurations are also available, mono and two layer lines are available with Rotating die.

Our Blown film machines incorporate advanced features like-grooved feed barrel, barrier screw, dosing system, Liquid PIB dosing system, manual as well as automatic screen changer, Rotating Die/ platform , internal bubble cooling, automatic bubble cage, online thickness monitoring and control, Surface and center winders , Auto tension control, Corona treaters etc. for longer life, higher productivity and better quality.

Features

•  Film With High Strength & Resistance
•  Low Power Consumption
•  Fast Return on Investment
•  Single Die , Double Die Option
•  Outstanding Output

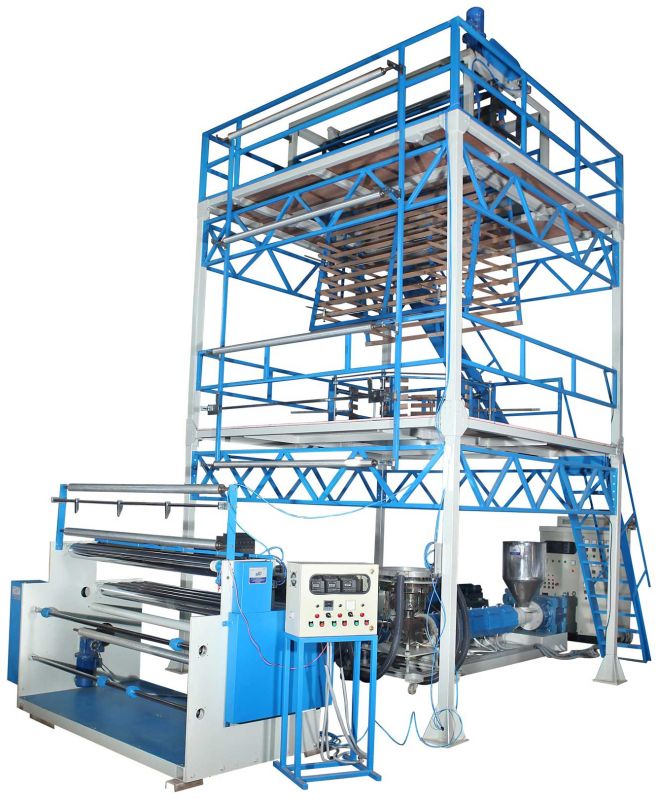

We Offer a diverse range of customized Wide Width Blown Film Machine to suit a customer’s specific requirement. Our most appreciated Wide Width Blown Film Plant is available with outputs ranging from 180 kg/hr to 350 kg/hr and lay-flat widths ranging upto 3200 mm for processing polymers as LD, LLD. Our monolayer blown film machines are also available with special configurations to process wide width HDPE film, similarly these lines are also available with up to 4 color inline flexographic printing.

Our monolayer blown film machines incorporate advanced features like-grooved feed barrel, barrier screw, dosing system, manual as well as automatic screen changer, Rotating Die / platform , internal bubble cooling, automatic bubble cage, online thickness monitoring and control, 2 / 4 station surface and center winders , Auto tension control, Corona treaters etc. for longer life, higher roductivity and better quality.

Features

•  Film With High Strength & Resistance
•  Fast Return on Investment
•  Pneumatic Surface Roll Winder
•  Low Power consumpation
•  Outstanding Output
