| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Driven Type | Electric |
| Condition | New |
| Automatic Grade | Automatic |
| Click to view more | |
Product Details
Power
1-3kw
Application
Film Making
Voltage
220V, 440V
Certificate
CE Certified, ISO 9001:2008
Type
Cast Stretch Film Making Machine
Country of Origin
India

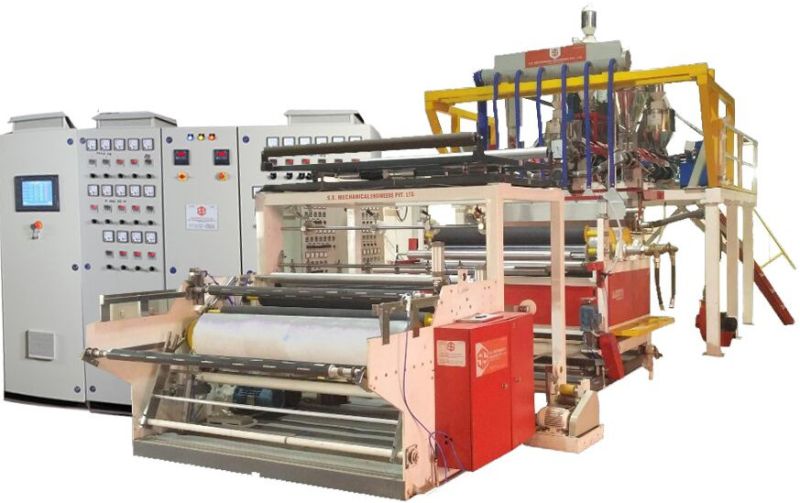

With our on going innovation and R&D, we have manufactured this CAST PE STRETCH FILM LINE/ Extrusion Machine which can effectively produce/ extrude cast stretch films, cling film, pallet wrap film, protection film, biodegradable film for packaging food of very high quality very cost effectively.
Features
- The Screw Barrel made of Alloy Steel hardened with Plazma Nitriding
- Imported T-Die made of special Mould Steel by high Precise process treatment to ensure the best result
- The Cast Chilled Roller Inside six way water circulation design and built-in spiral way to ensure roller surface temperature uniform
- Roll Winder can be Moved forward backward with auto tension control Auto Roll Cutting system with PLC Control
- In-Line Edge Trim Cutting Re-feeding System
Specification
| Model | SS/SF-55/75-1000 | SS/SF-55/75/55-1000 | SS/SF-55/90/55-1500 | SS/CF-75/100/75-2000 | SS/CF-75/120/75-2500 | |
| Material | LLD/LD/PIB | LLD/LD/PIB | LLD/LD/PIB | LLD/LD/PIB | LLD/LD/PIB | |
| Screw Size (MM) | 55/75 | 55/75/55 | 55/90/55 | 75/100/75 | 75/120/75 | |
| Film Width (MM) | 1000 (Finished) | 1000 (Finished) | 1500 (Finished) | 2000 (Finished) | 2500 (Finished) | |
| T-Die Width (MM) | 1250 | 1250 | 1800 | 2300 | 2800 | |
| Max. Extrusion Output (Kg/Hr) | 120 | 160 | 150-220 | 150-280 | 200-320 | |
| Winder | Surface Roll Winder with Auto Cutting & Reel Changeover System by PLC | |||||
| Machine Dimension (Mtrs) (L x W xH) | 12 x 4 x 5 | 15 x 5 x 5.5 | 17 x 6 x 6 | 19 x 7 x 6.5 | 22 x 8 x 6.5 | |
