Product Details

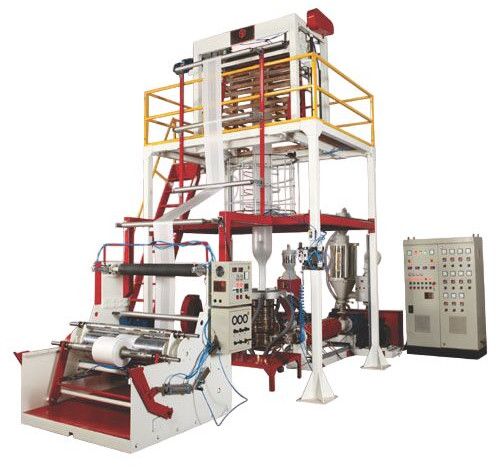

This A-B-A Blown Film Extrusion Machine is basically a Blown Film Plant producing a THREE LAYER FILM but with the TWO EXTRUDER. It’s a result of a specially designed A-B-A Type Co-Ex Die which enables to produce a Three Layer Film with Two Extruder. Technically in A-B-A type film, the Outer and Inner layer will be of the same Polymer as being fed by the same extruder and a Middle Layer will be of a different Polymer which will be fed by a second extruder.
The cost of virgin (raw) material (HDPE/ LDPE) continues to go up every year, and therefore many packaging film producers equipped with co-extrusion blown film extrusion machines have started to make 3 layer (A-B-A) films to reduce cost, replacing the traditional single and two layer blown film extrusion machines to stay competitive in the market
The A-B-A Blown film extrusion lines are manufactured to adapt to a broad range of applications. The plant is a rugged and compact model – very space saving. It comes with advanced technology like the grooved Feed Technology, PID Temperature controllers, and AC Frequency Drive.
Features
- Film With High Strength & Resistance
- Fast Return on Investment
- Three layer Film
- Low Power consumpation
- Outstanding Output
Specifications
| SPECIFICATIONS | |||||
| Model | SS 3L-1000 | SS 3L-1250 | SS 3L-1500 | SS 3L-2000 | SS 3L-3000 |
| Screw Dia Size (MM) | 40/ 40/ 40 | 45/ 55/ 45 | 55/ 65/ 55 | 65/ 75/ 65 | 75/ 90/ 75 |
| Layflat Film Width (MM) | 300 – 1000 | 400 – 1250 | 700 – 1500 | 1000 – 2000 | 2000 – 3000 |
| Film Thickness (Micron) | 10/01/00 | 20-200 | 20-150 | 20-150 | 20-150 |
| Max. Extrusion Output (Kg/Hr) | 110 | 200 | 250 | 320 | 430 |
| Machine Dimension (Mtrs) (L x W xH) | L-7 x W-4.5 x H-7 | L-8 x W-6 x H-8 | L-8.3 x W-4.2 x | L-9 x W-5 x H-10 | L-10 x W-6 x H-12 |
